PFT Series

PBRJ

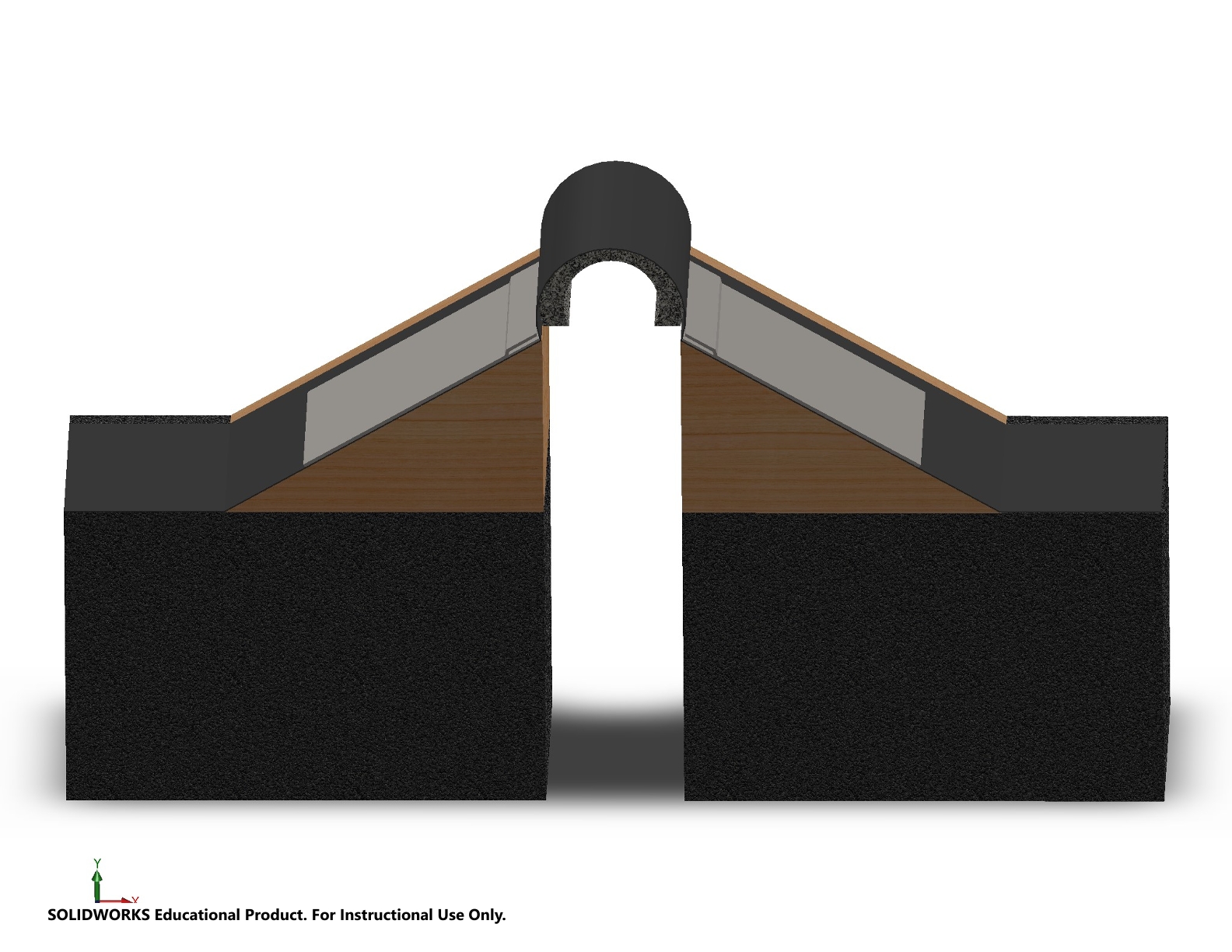

Engineered for flexibility, this Bello type roof cover employs a malleable membrane that accommodates multi-directional movement. Suitable for built-up, flat, or sloped roof applications, it also offers an optional water stop. The availability of factory-fabricated transitions ensures watertight results. Joint sizes are adaptable, ranging from 1" to 16". For larger sizes or custom applications, please contact the factory.

Request A Quote

PBRJ & PBRJW -Tender Specification

View File

PBRJ TDS

View File

PBRJ 200

View File

PBRJ 400

View File

PBRJ 1600

View File

PBRJ 600

View File

PBRJ 800

View File

PBRJ 1000

View File

PBRJ 1200

View File

PBRJ 1400

View File
MODEL JOINT WIDTH MINIMUM OPENING MAXIMUM OPENING EXPOSED SURFACE BLOCKOUT WIDTH BLOCKOUT HEIGHT
PBRJ-200 51mm 10 mm 76mm N/A N/A N/A
PBRJ-400 102mm 10 mm 152mm N/A N/A N/A
PBRJ-600 152mm 10 mm 229mm N/A N/A N/A
PBRJ-800 203mm 10 mm 305mm N/A N/A N/A
PBRJ-1000 254mm 10 mm 381mm N/A N/A N/A
PBRJ-1200 305mm 10 mm 457mm N/A N/A N/A
PBRJ-1400 356mm 10 mm 533mm N/A N/A N/A
PBRJ-1600 406mm 10 mm 610mm N/A N/A N/A
PBRJW-200 51mm 10 mm 76mm N/A N/A N/A
PBRJW-400 102mm 10 mm 152mm N/A N/A N/A
PBRJW-600 152mm 10 mm 229mm N/A N/A N/A
PBRJW-800 203mm 10 mm 305mm N/A N/A N/A
PBRJW-1000 254mm 10 mm 381mm N/A N/A N/A
PBRJW-1200 305mm 10 mm 457mm N/A N/A N/A
PBRJW-1400 356mm 10 mm 533mm N/A N/A N/A
PBRJW-1600 406mm 10 mm 610mm N/A N/A N/A

PBRJ & PBRJW installation
